SPREADPORT TERMINATOR SYSTEM
The 2100 CFM SPREADPORT TERMINATOR SYSTEM is utilized on today's higher horsepower engines including spreadport engine combinations. Utilizing a "1" sized Billet Twin Gear Pump (~6.5 GPM), idle bypass and electronic bypass as standard equipment this system is able to deliver the volume and fuel atomization required in these engines at the right place and the right time. No need for "magic camshafts" to mask poor fuel delivery with this system. If you are serious about running alcohol in your higher horsepower engine and realize an alcohol carburetor can't get the job done this is system is for you.
SPREADPORT TERMINATOR SYSTEM
(1) Billet CNC 2100 CFM Terminator Throttle Body
(1) Combination Barrel Valve, Fuel Shutoff and Pill Holder
(8) Injector Hoses
(8) Nozzle Bodies and Nozzle Jets
(1) Billet Twin Gear Pump
(1) Pump Mount and Drive Kit (Most Engines Makes Available and Listed Below)
(1) Idle Bypass with EZ Install Fitting
(1) Electronic Bypass with EZ Install Fitting
(1) Shut-Off Cable of Appopriate Length
(1) Fuel Filter
(1) Assortment of Pills for Fine Tuning
(1) 30+ Page Instruction Manual
(1) Barrel Valve Flow and Initial Tune-up by KillerRONS.COM Technician
SYSTEM UPGRADES AVAILABLE
Return Spring Kit - $25
Fully Bushed Shafts - $150
#7031 Inline #6 Check Valve - $53
#7007 Inline Filter (-6AN) - $52
#KP996 Idle Bypass Hose and Fitting Kit $95
Braided Stainless Steel Injector Hoses - $85
Dual Throttle Body System Upgrade - $845
Chrome Plated Throttle Body (each) - $350 (allow 2-3 weeks)
Black Anodized Throttle Body (each) - $200 (in stock)
OTHER ITEMS FOR CONSIDERATION
#KP995 Fuel System Hose and Fitting Kit $250
Basic Primer - $210
Primer Plus - $410
Track Survival Kit - $55

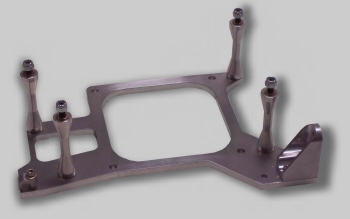

Terminator Scoop Mount Kit - $165

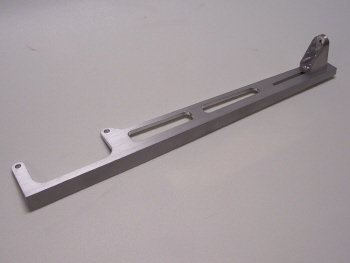

Terminator Throttle Controller Extension $105
Terminator Ring Scoop Tray Hold Downs for Dual Terminators $65 each
The SPREADPORT DUAL TERMINATOR SYSTEM is the choice for cast and sheet metal tunnel ram applications, especially in Top Dragster, Top Sportsman, Quick 8 and Quick 32 applications. This complete system includes all of the components in the Spreadport Terminator System with the addition of a second throttle body sells for $3,295.
Mechanical fuel injection operates at very high pressures so there is no worry of "fuel sloshing" under acceleration. Due to this you can mount the throttle body in any direction on your engine.
The Terminator dimensions are based off of a Dominator so the base flange is a 4500 pattern and the top is 7.250" across. The throttle body is slightly lower in height than a Dominator measuring 2.750".
All Fuel delivery components are hard anodized and alcohol compatible seals are used throughout making the system impervious to the much-debated effects of alcohol on metals and rubbers.
The throttle cable lever comes standard with 1/4-28 thread but the lever can be changed to 10-32 thread if the customer desires. Throttle throw from idle position to wide open throttle is 2.00". The shafts are 3/8" in diameter and each shaft features a pair of built-in return springs (one each side).
Throttle cable anchors and scoop mount kits can be seen here.
The following are links to our various fuel pump mount and drive kits. If you don't see your engine make let us know. SBC High Mount – Gear Pump, SBC Low Mount – Gear Pump, SBC High Mount – Vane Pump, SBC Low Mount – Vane Pump, SBC Aussie Mount, BBC High Mount – Gear Pump, BBC Low Mount – Gear Pump, BBC Low Mount – Vane Pump, BBC High Mount – Vane Pump, SB Ford Bi-Mount –Gear Pump, SB Ford Bi-Mount (Windsor) – Vane Pump, Ford Cleveland Mount – Vane Pump, BB Ford Mount – Gear Pump, BB Ford High Mount – Vane Pump, SB Chrysler Bi-Mount – Gear Pump, SB Mopar Bi-Mount – Vane Pump, BB Mopar High Mount – Vane Pump, BB Mopar – Gear Pump, Pontiac Mount – Gear Pump, Pontiac Mount – Vane Pump
KillerRONS.COM systems are tailored to your combination by skilled technicians who have championship level experience using these systems. In most cases your system will ship no later than the next business day.
Most customers drill and tap their own manifolds following this procedure. If you are uncomfortable with this we can do it for you on the CNC machine for $150. If you need a new manifold we are a dealer for Brodix, Dart and Pro-Filer and would be glad to make a recommendation for you. Gasket matching porting is avalable for $225-$275 depending upon the manifold.
Need more answers? Visit our FAQ page.
