Share |      THE EXPERTS IN RON'S FUEL INJECTION NORMALLY ASPIRATED, NITROUS ASSISTED AND SUPERCHARGED APPLICATIONS!



BYPASS PILLS, NOZZLE BODIES, NOZZLE JETS & INJECTOR HOSES

BYPASS PILLS
Ron's Fuel Injection bypass pills (photo on right) are flowed to exact tolerances and are available in sizes .040, .050, .052, .054, 056, .058, .060, .062, .064, .066, .068, .070, .072, .074, .076, .078, .080, .082, .084, .086, .088, .009, .092, .094, .096, .098, .100, .102, .104, .106, .108, .110, .112, .116, .120, .124, .128, .134 and .140.  They are $4.25 each.


NOZZLE BODIES
Ron's Fuel Injection nozzle bodies are available individually or in sets of eight. Nozzle bodies are $24.0 each
or $192 for a set of eight (includes mesh filter and hood as shown in the photo to the right).  You can purchase the mesh filter ($.85 ea.) and hoods ($.90 ea.) individually as well.

NOZZLE JETS
The precision drop-in nozzle jets are $10 each or $80 for a set of eight.  Ron's Fuel Injection nozzle jets are precision flowed and matched to ensure your engine receives matching fuel flow.  This does NOT mean that the entering orifice size at the bottom of each nozzle jet will be the same in your matched set.  Please note that inserting metal tools into the orifice of your nozzle jet (for measuring or cleaning) can cause damage and change the flow rate rather dramatically).  Please click
here to read how these nozzle jets are made.

INJECTOR HOSES
We offer the Ron's Fuel Injection premium 400 psi rubber straight injector hoses for $16 each or $128 for the set of eight.  These hoses are made when ordered so you can give us the exact measurements you would like or we can send you a pre-determined kit based upon your engine and throttle body make.  If your valve cover clearance is tight we offer a rubber hose with a 90* end for $30 each or $240 for the set of eight.

We also offer a braided stainless steel injector hose option but please call or email for pricing and availability.  These hoses feature a male 1/8" NPT thread on one end and -3AN straight female on the other (photo below).  These hoses are not as "forgiving" as the rubber hoses and look poor if too long so we require measurements for them.  Measurements are taken from the tip of fitting to the tip of fitting so please know your lengths needed when calling.

LEAK DOWN TESTER
This kit will allow you to set your barrel valve percentage to exacting percentages.  It also includes a handy fitting for leaking your engine cylinders.  $150


TRACK SURVIVAL KIT

What would you give for a spare belt, spare injector line or O-ring at the track?
The New Track Survival Kit includes the above items as well as pill plug,
pill spring, O-ring kit for your specific barrel valve, fuel filter O-ring, injector,
pulley set screwsidle screws, mesh filters.
$66 plus shipping
Please note when ordering this we will need to know the length of belt
and the length of injector hose you will need as well as the color of your barrel valve
and the style of your fuel pump.  NO SUBSTITUTIONS PLEASE!


"BLACK" PUMP DRIVE KITS FOR MOST ENGINE MAKES - $350
*If you need to purchase pump drive parts individually they are listed below.

CRANK MANDREL FOR MOST ENGINE MAKES (includes mandrel, bolt  and washers) - $69.00
PUMP MOUNTS (includes brackets, spacers and fasteners) - $85 approx. depends upon engine make
SLOT DRIVE ASSEMBLY - $141
36 TOOTH PUMP PULLEY - $53
18 TOOTH CRANK PULLEY (1" BORE) - $63
18 TOOTH DRIVE PULLEY (1.5" BORE) - $79

DRIVE BELTS $22 (SPECIFY LENGTH)
** Drive parts for the discontinued vane pump are no longer available.  Please call or email for options.

COMBINATION BARREL VALVE - $350
The #3014A Series Combination Barrel Valve is a pill holder, fuel shutoff and distribution block all in one.  It also has a provision for an idle bypass if you are using a "1" or larger fuel pump.  It arrives standard with the barrel valve lever not shown in the photo.  Barrel Valve Turnbuckle Assembly available for an additional $28 (includes heim ends and jam nuts).  This barrel valve has replaced the discontinued "purple" and "black" barrel valves.  The Barrel Valve O-Ring Kit for the #3014A Series is $10 plus shipping.


REMOTE BREATHER NOZZLE KIT
This kit utilizes eight barbed nozzles, remote breather manifold and 20' of hose.  It is commonly used in very dirty applications such as mud trucks and allows the nozzle bodies to breathe into a clean area such as a driver's compartment.  The barbed nozzle bodies are $35 each, the remote breather manifold is $65 and the hose is approximately $1.00 per foot.  Please specify the amount of hose you will need when ordering based upon where you will be mounting the manifold.

FUEL SHUTOFF FOR CARB OR INJECTION - CALL FOR PRICING

The Fuel Shutoff Kit is used inline after the fuel pump with injection or a carburetor.  It utilizes -8AN fittings for diversion of fuel, usually back to the fuel cell.  The kit includes a three-way shutoff valve with fittings, shutoff bracket, cable clamp and cable end assembly.  Add a shutoff cable below to round out your needs.  If you have a -6AN outlet fitting on your pump there is an adapter fitting #72768 available for $13.50

FUEL SHUTOFF CABLES AND CLAMPS
48" CABLE $90 (commonly used in door car apps)
60" CABLE $92
72" CABLE $92
84" CABLE $97
96" CABLE $100
120" CABLE $108
144" CABLE $115 (commonly used in dragster apps for dash mount)
Swing Cable Clamp $13.5
Ball Joint Cable End
$13.5

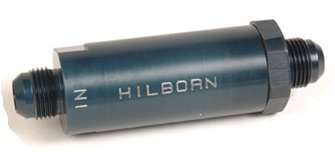

FUEL FILTERS
RON'S "BIG FILTER" (#7003 Series) $122
RON'S "SMALL FILTER" (#7007 Series) $63

RON'S fuel filters are made from 6061-T6 billet aluminum.  The "big filter" (pump inlet side) measures 2" x 6-1/2" and comes standard in all complete fuel systems machined with -10AN male fittingss installed.  It can also be configured with -8AN, -12AN fittings or any combination of the three. The stainless steel element can be purchased separately for $20.  The "small filter" (pump outlet side) comes machined with -6AN male fittings.  The stainless steel element can be purchased separately.



SURGE TANK#7029WF (13" x 8 1/2" x 5 1/2")  $445
Surge tanks are required for most vehicles (doorslammers) with a rear mounted main fuel cell, relative to the engine. Note: This surge tank is not required if the user is able to reposition his/her main fuel cell to the front of the engine.If this is not done, under launch acceleration, a rear mounted cell will not be able to provide the fuel required to feed the typical racing engine early in the run. Symptoms of this will be a definite hesitation upon launch or uncharacteristically inconsistent performance due to a "lean" condition seen by the engine.

This surge tank is normally placed high in front of the engine to gravity feed the mechanical pump. One of the advantages seen in utilizing this tank is a very easy start-up procedure for the engine. The racer’s existing electric pump is used to deliver the fuel from the rear cell and an incorporated float bowl is utilized to manage the incoming fuel.

The surge tank has a capacity of 1.5 gallons and has one vent (-6AN) and dual return provisions (also -6AN).  The carb bowl fitting is -8AN and the bottom outlet that goes to the mechanical fuel pump is -10AN


4-GALLON VERTICAL JAZ CELL
(9" x 10" x 17")  $258
An alternatove to the surge tank is the 4-gallon vertical JAZ fuel cell.  Equipped with the proper fittings for injection, this cell would be mounted in the front of the vehicle and allow you to completely remove the fuel cell and electric pump for the rear of the car.  This is the preferred solution to the rear-mounted fuel cell problem as it is cheaper on the racer and keeps things quite simple. We also have other fuel cell options so call if this will not work for you.  Such as a more horizontal cell (dragster-style) that sells for $300.



AIR CLEANER BRIDGE FOR FLYING TOILET $45
This handy bracket allows you to use a standard air cleaner with your Flying Toilet.  Please be aware that some of the older Flying Toilet throttle bodies were not machined for this accessory.  If yours is not we can handle it or you can do it yourself.  This bracket adds 1.5" to the throttle body height.


THROTTLE AND SHUTOFF CABLE COMBO BRACKET FOR FLYING TOILET (#2040TB) $83
This bracket allows you to hook-up your Flying Toilet throttle cable and shutoff with one bracket.  The below photo is shown with two optoinal #846 cable clamps sold for $13.5 each.  Please specify when ordering whether or not you need the cable clamps.  More scoop mount and throttle brackets can be seen here.





Mechanical Bypass #75425
$101  Optional #BON6FX6FX6M fitting for easy installation $24.50
I
nstalled on the pressure side of the pump, a mechanical bypass is made up of two functioning parts. A high-pressure poppet and spring dictates when the bypass is activated and a pill dictates how much fuel is "bled off" back to the tank. Both of these parts are adjustable by the experienced user.  This mechanical version is preferred down track as it bleeds to full bypass more slowly than an electric version creating a better fuel curve.



Electronic Bypass #3048
$235  Optional #BON6FX6FX6M fitting for easy installation $14.

Also installed on the pressure side of the pump, the electronic bypass is made up a solenoid and pill holder. The solenoid is activated electronically by time, RPM, activation of a transbrake, etc. and the chosen pill once again, determines the amount of fuel to be "bled". This set-up is very simple to use and can be operated as a high RPM bypass and and  a low RPM bypass on the starting line.  It is also a popular tool for "super class" racers looking to clean-up their fuel mixture while on the throttle stop.





ALCOHOL INJECTION APPROVED THROTTLE BODY COVER and AIR FILTER
Intensity Racing Products offers this great throttle body cover (below left) to keep debris from entering your engine. $115.00 shipped.  Specify wether you need this for a Flying Toilet or Terminator when ordering.  Flying Toilet users will need to utilize these products with the above Air Cleaner Bracket.

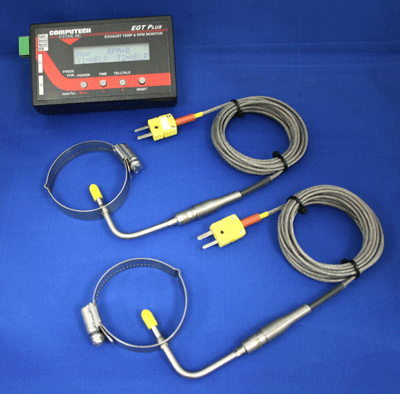

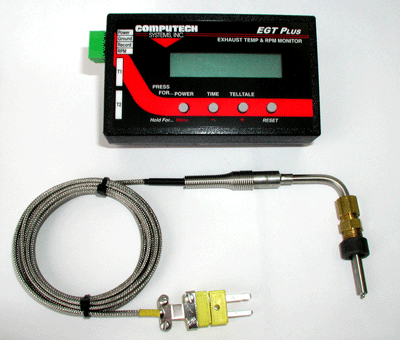

EXHAUST GAS
TEMPERATURE
EGT Plus from Computech

Single Probe - call for price
Dual Probe - cal for price

This is an excellent tool for monitoring EGT's at varius points throughout a pass.
